DU500

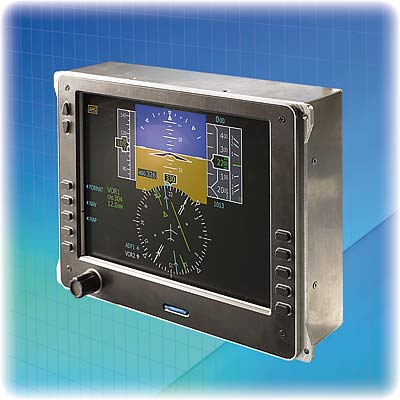

avis DU500 (Display Unit) is a very compact lightweight device. The
crystal clear TFT screen provides full sunlight readability. The
AVIS DU is available in two versions as DU500 and DU500+, providing
same features, only the temperature range is extended to -20° to
+75° Celsius on the plus version.
Technical
Data
Cut out size LLL
x BBB mm
Front size over all LLL x BBB mm
Depth behind panel LLL mm
Depth over all LLL mm
Weight WWWg
Electrical
Interface
Voltage Supply
10 to 30V DC
Power Consumption 800 mA at 24VDC (<20W)
Signal
Interfaces Qty
Private Bus
2
RS 232 2
RS 485 2
GPS Antenna 1 (optional on PFD)
ARINC 429 2 (optional)
SD Card reader 1 (optional on PFD)
The DU500 is available as PFD (Primary Flight Display) and as MFD
(Multi Function Display). Software adaptation to aircraft specifics
is available on request.
