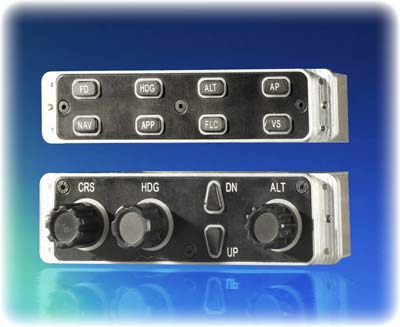

CHP500
avis CHP 500 (Data Distribution Unit) is an indispensable operating
device. The unit is equipped with Course Selector, Heading Bug
Selector and the Altitude Pre Select Knob. The unit will be
interconnected with the DDU. If the unit is installed, the Heading
Bug and the Altitude Bug will appear automatically. The FMS created
CDI can be selected to independent QDMs now.
Technical
Data
Size over all
150 x 32 x 56 mm
Panel Cut Out 135 x 32 mm
Weight 120 g
Electrical
Interface
Voltage Supply
via private bus line
Signal
Interfaces Qty
Private Bus
connectors 1 (2 for CHP502 version)
